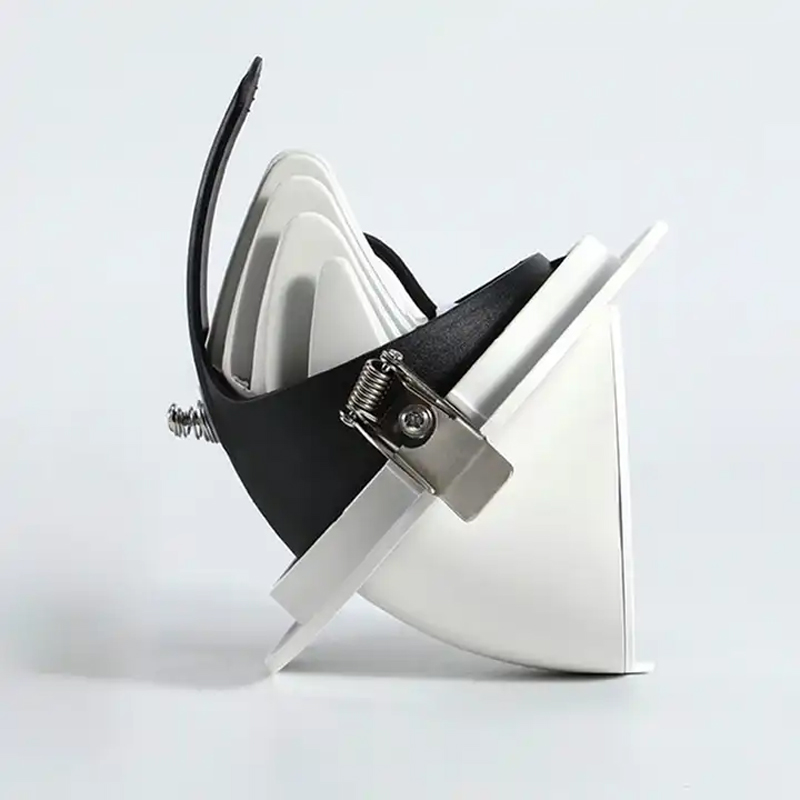

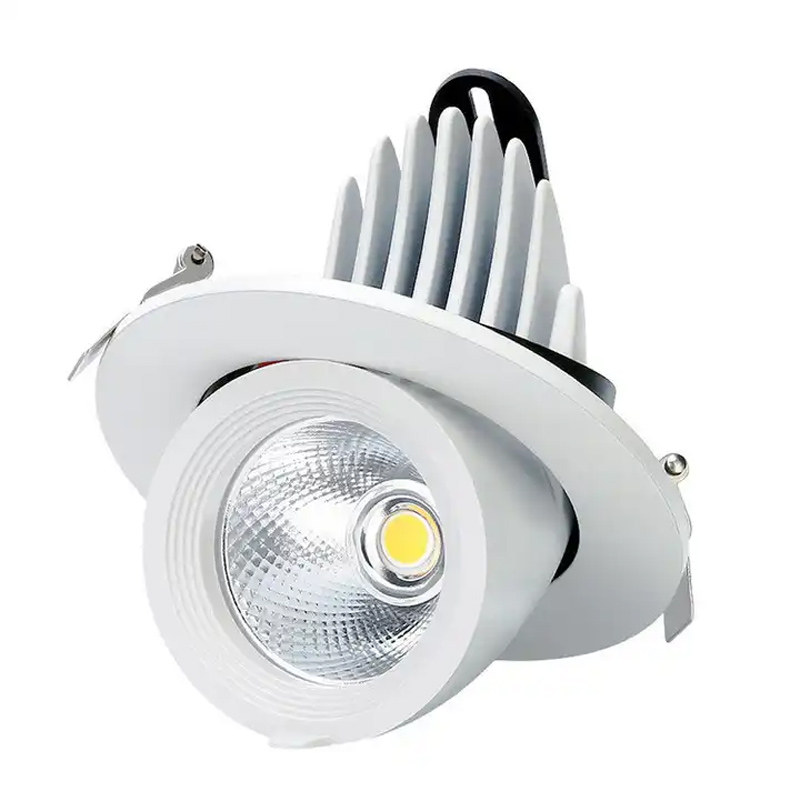

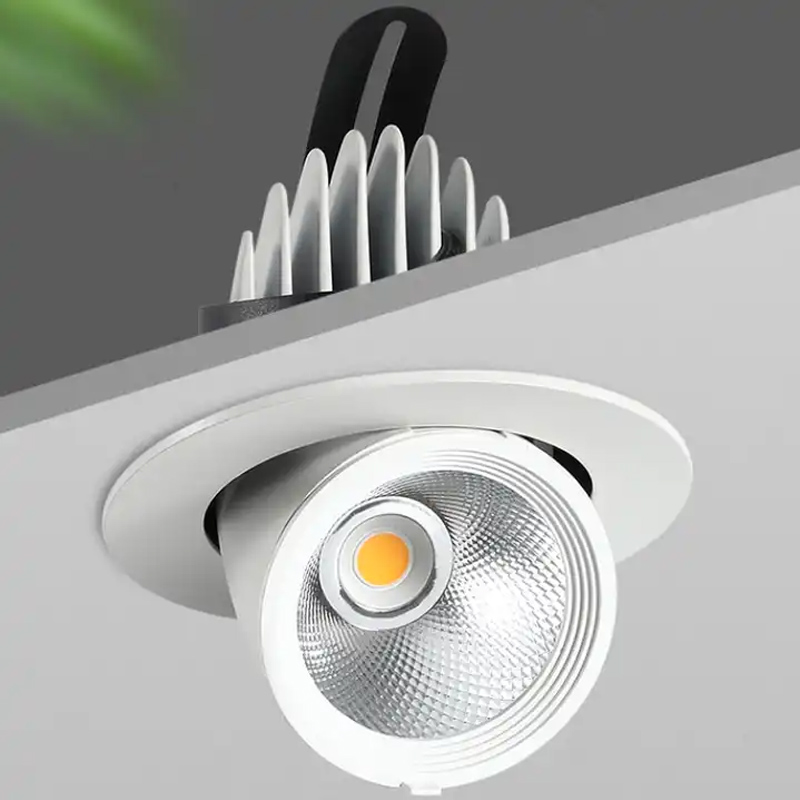

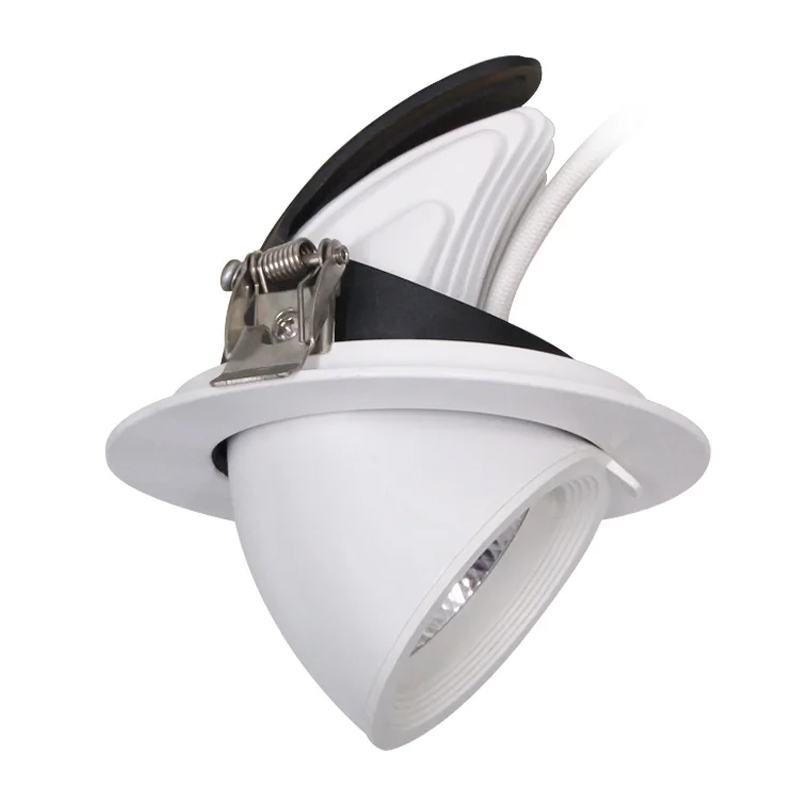

C Series Gimbal Recessed LED Downlight
Product ID : AG-DL-C
Features :

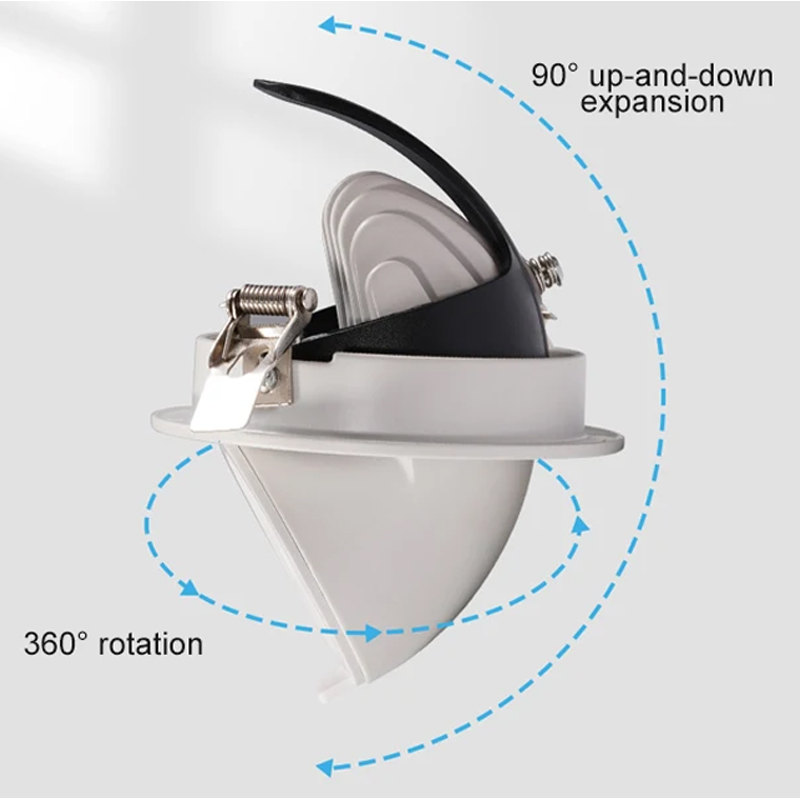

● Adjustable LED spot lights, horizontal 360° rotation, vertical 90° adjustable
● Die-casting aluminum housing, good for heat dissipation
● CRI≥90, high lighting efficiency 100Lm/W.
● Triac/1-10V/DALI dimmable optional
● Beam angle: 15/24/40/60° available
● White & Black housing optional
Product Description
Data sheet:
| Model | Power | Dimension | Cut-out | PF | Beam angle | Lighting effect | CRI | LED | Flicker free |
| AG-DL-10C | 10W | D85*78mm | 75mm | ≥0.9 | 24° | 100Lm/W | ≥90 | Bridgelux | Yes |
| AG-DL-16C | 16W | D110*90mm | 95mm | ≥0.9 | 24° | 100Lm/W | ≥90 | Bridgelux | Yes |
| AG-DL-24C | 24W | D135*103mm | 115mm | ≥0.9 | 24° | 100Lm/W | ≥90 | Bridgelux | Yes |
| AG-DL-35C | 35W | D160*138mm | 145mm | ≥0.9 | 24° | 100Lm/W | ≥90 | Bridgelux | Yes |

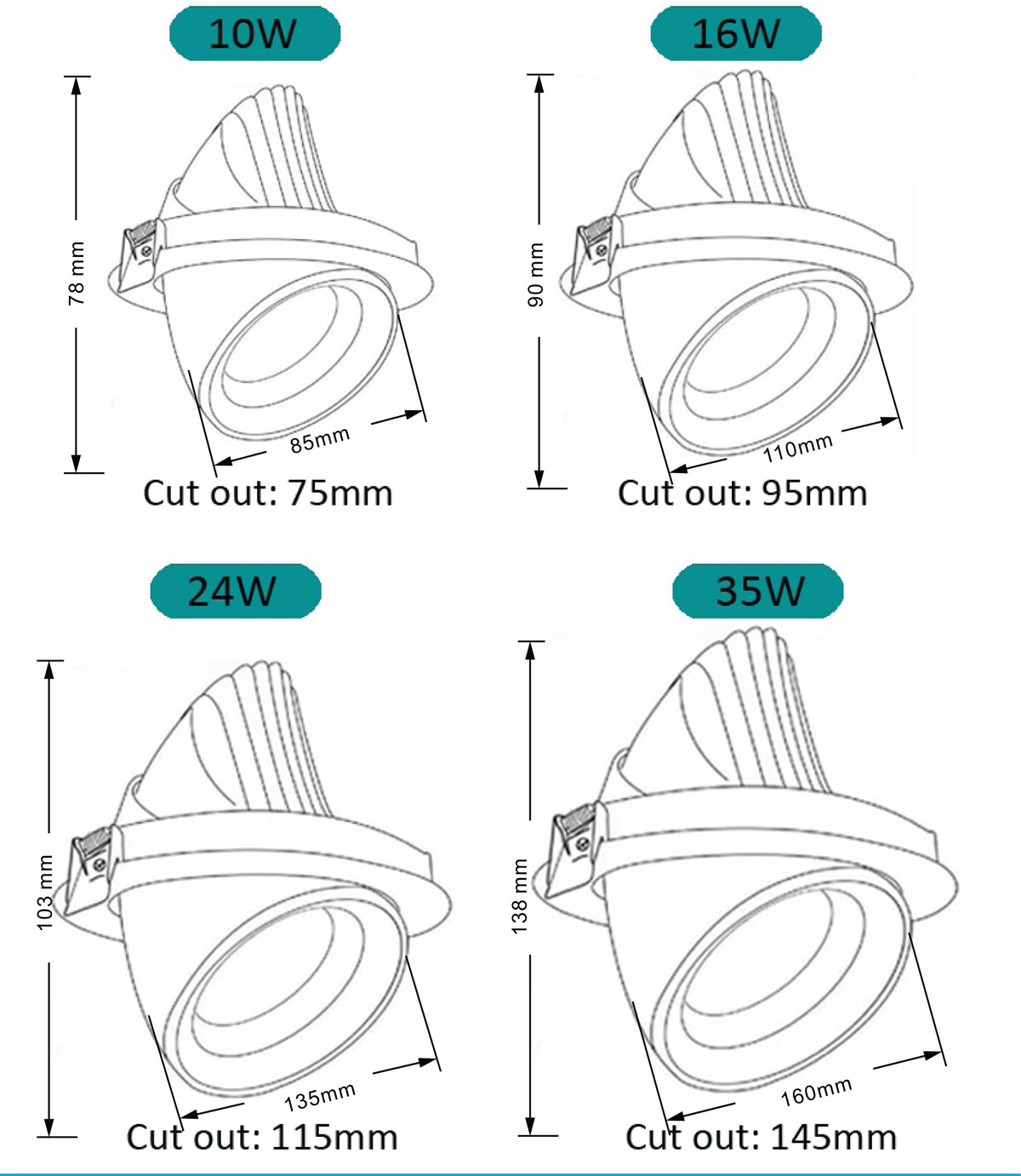

Size:
