PRODUCT

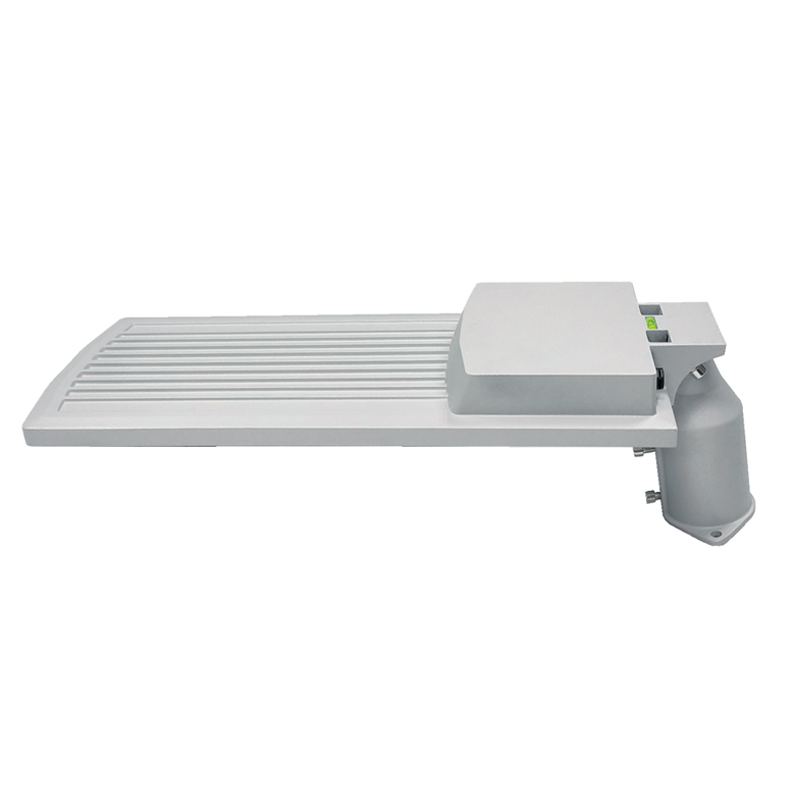

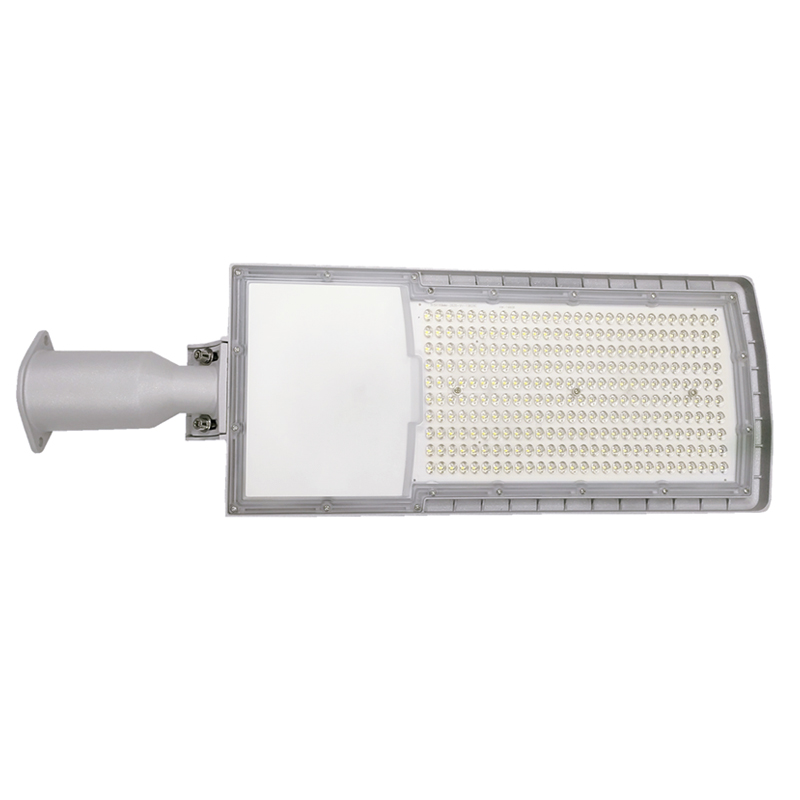

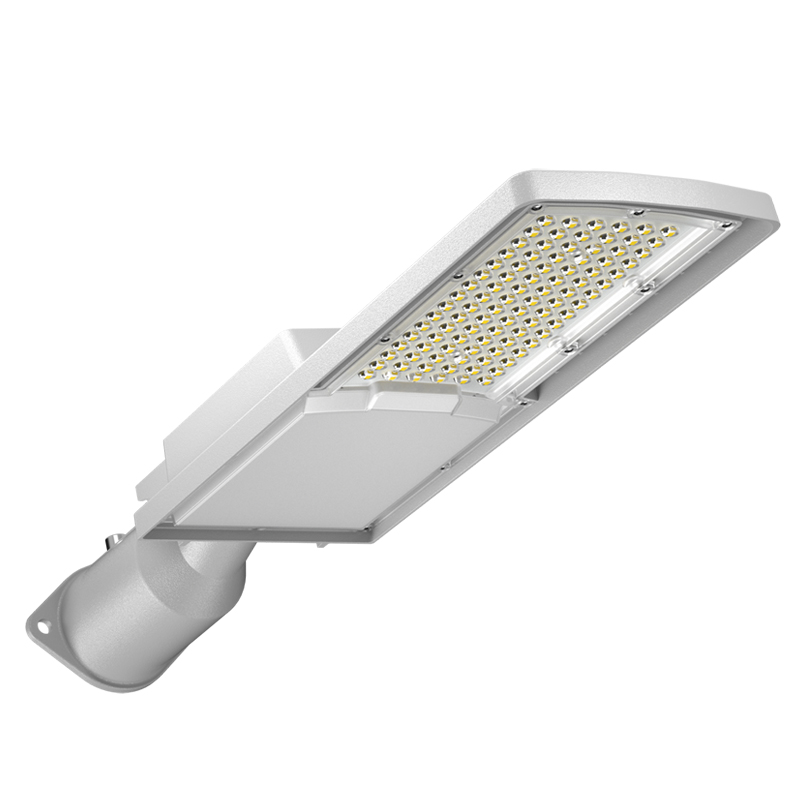

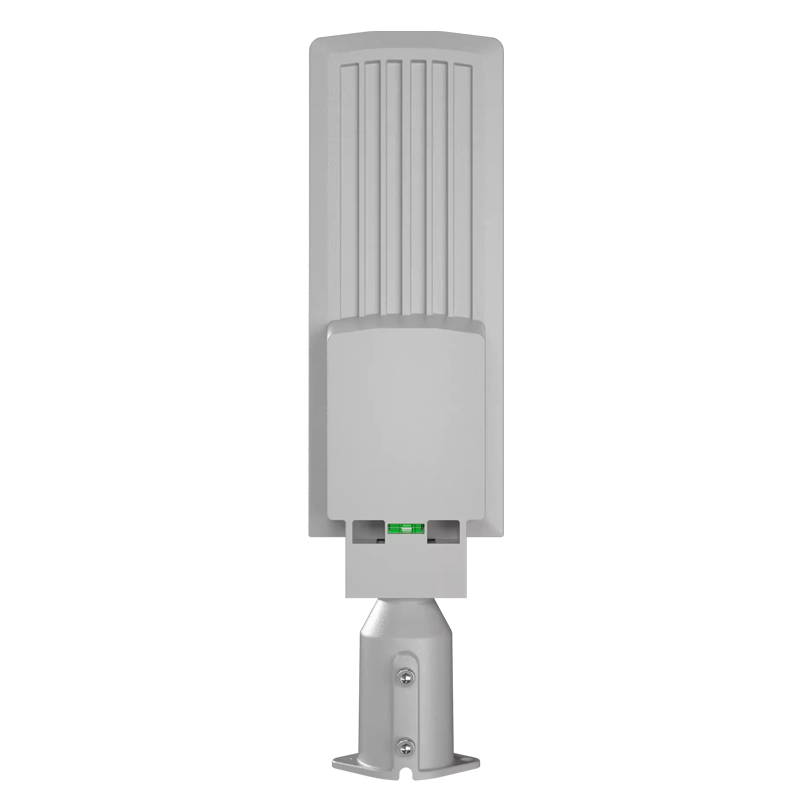

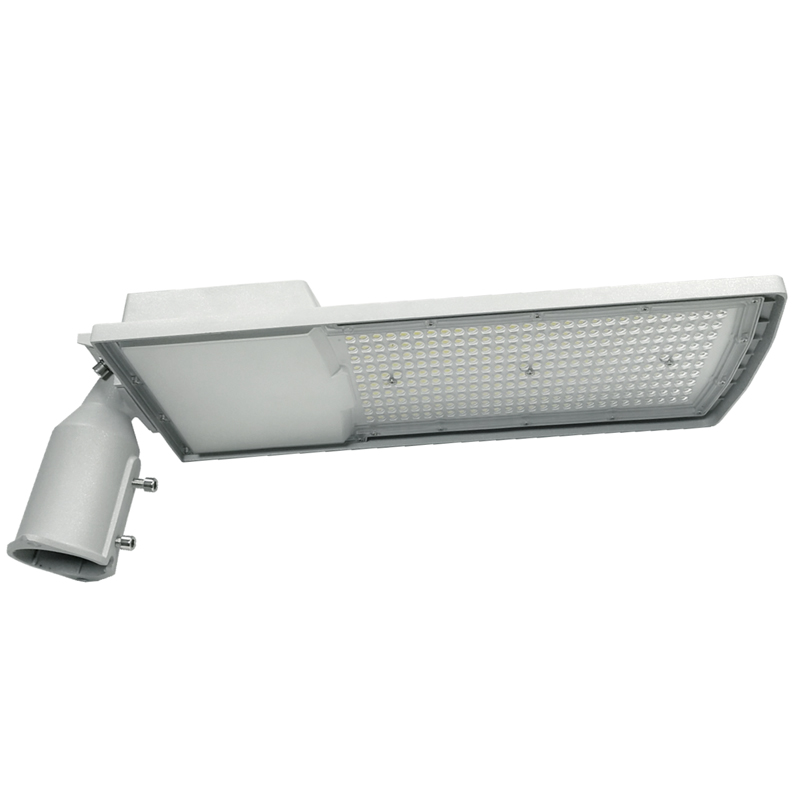

B Series LED Street Light
Product ID : AG-SL-B
Features :
● IP66, IK08,5KV surge protection for outdoor using;
● Die-casting aluminum housing makes the fixture with elegant appearance, and perfect heat dissipation;
● High brightness Epistar LED chip, low light decay keep the fixture in better performance;
● Can add photocell, make the lamp with smart control.
Product Description
Data sheet:
| Model | Dimension | Power | PF | Beam angle | Lighting effect | CRI | LEDs Chip |
| AG-SL-30B | 501*127*78mm | 30W | ≥0.95 | 70*140° | 140Lm/W | >80 | Epistar |
| AG-SL-40B | 501*127*78mm | 40W | ≥0.95 | 70*140° | 140Lm/W | >80 | Epistar |
| AG-SL-50B | 549*147*78mm | 50W | ≥0.95 | 70*140° | 140Lm/W | >80 | Epistar |
| AG-SL-60B | 549*147*78mm | 60W | ≥0.95 | 70*140° | 140Lm/W | >80 | Epistar |
| AG-SL-80B | 589*207*78mm | 80W | ≥0.95 | 70*140° | 140Lm/W | >80 | Epistar |
| AG-SL-100B | 589*207*78mm | 100W | ≥0.95 | 70*140° | 140Lm/W | >80 | Epistar |
| AG-SL-120B | 589*207*78mm | 120W | ≥0.95 | 70*140° | 140Lm/W | >80 | Epistar |
| AG-SL-150B | 669*222*78mm | 150W | ≥0.95 | 70*140° | 140Lm/W | >80 | Epistar |
| AG-SL-200B | 719*237*78mm | 200W | ≥0.95 | 70*140° | 140Lm/W | >80 | Epistar |

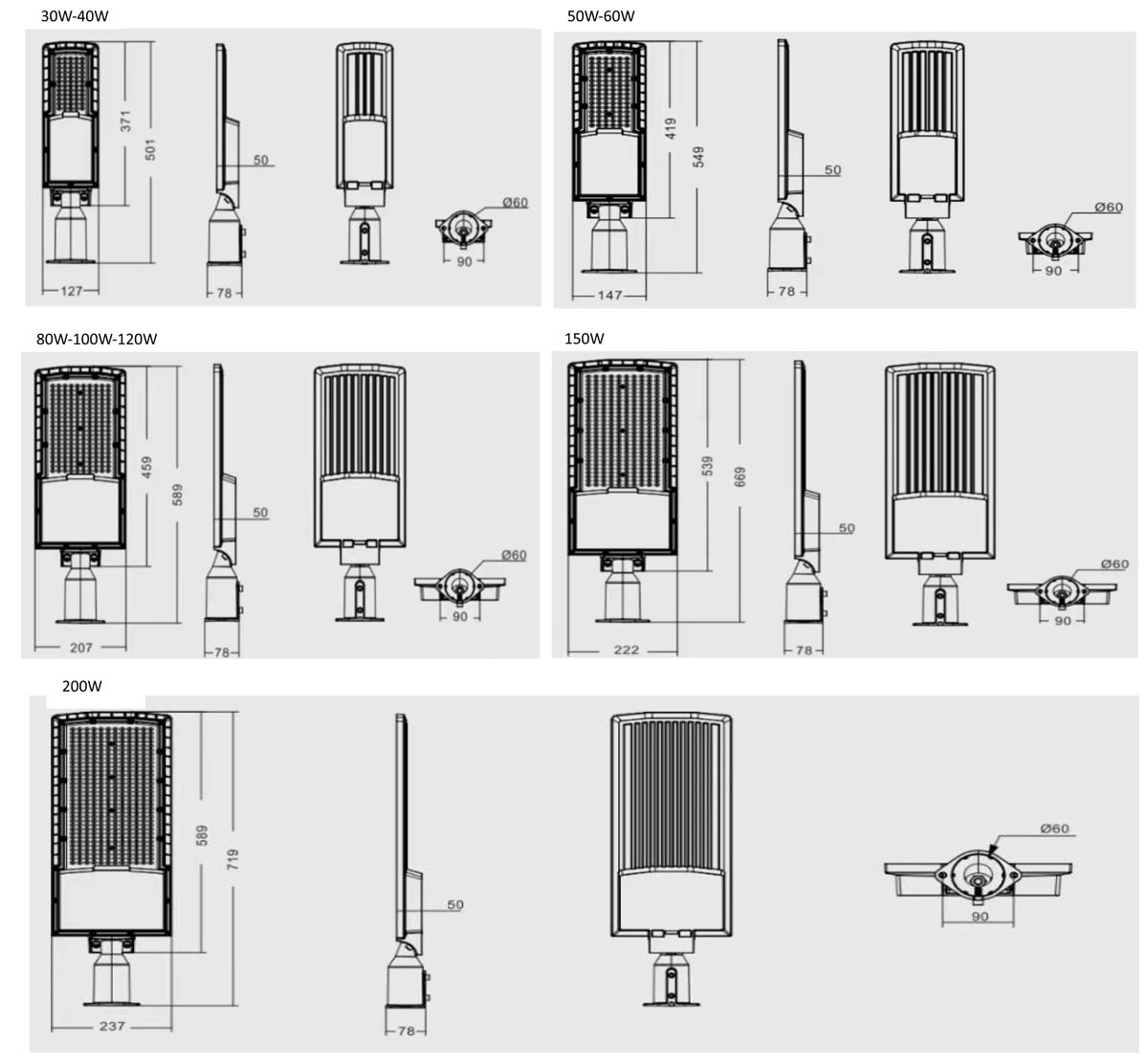

Size:
Unit:mm
